Photos

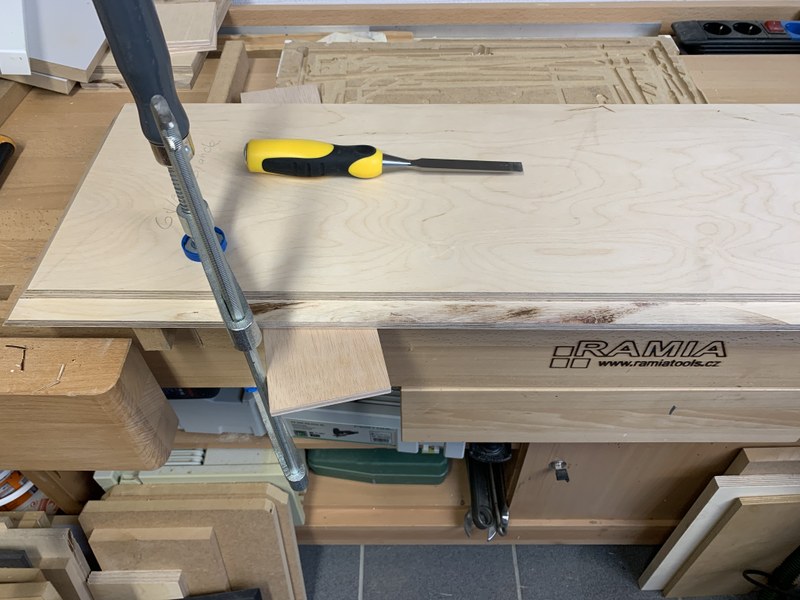

Remove saw residue Remove saw residue

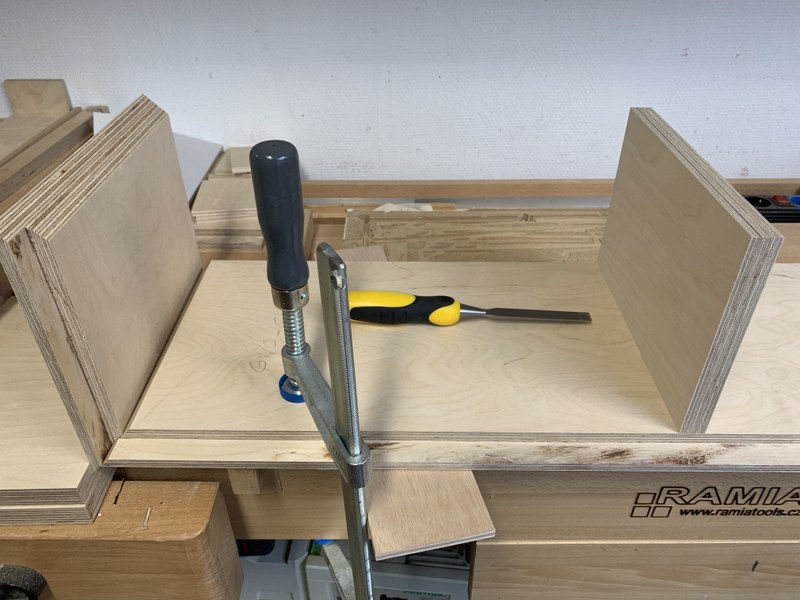

Remove saw residue 2 Remove saw residue 2
Milling 80 mm holes in ribs Milling 80 mm holes in ribs
Milling the hole in the backpanel for the venting tube Milling the hole in the backpanel for the venting tube
Milling the hole 95 mm Milling the hole 95 mm
Milling twice 80 mm Milling twice 80 mm
Last round routing 21 mm completely Last round routing 21 mm completely
Routing soft edges in the circels Routing soft edges in the circels
Measuring the side panel Measuring the side panel
Measuring the side panel Measuring the side panel
Crossover ground plate Crossover ground plate
Gluing the back panel Gluing the back panel
All side panels glued with 8 mm felt All side panels glued with 8 mm felt
All bitumen glued with water resistant glue. All bitumen glued with water resistant glue.
The cavity behind the midrange cabinet on the back side of the speaker. The cavity behind the midrange cabinet on the back side of the speaker.
Mid and tweeter cabinet with bitumen and felt. Mid and tweeter cabinet with bitumen and felt.
Both loudspeakers in different stages of the building process. Both loudspeakers in different stages of the building process.
Ready for soldering Ready for soldering
Crossover components glued Crossover components glued
Gluing bitumen at the bottom sides. Gluing bitumen at the bottom sides.
Bitumen in de back side cabinate of the tweeter and mid cabinet. Bitumen in de back side cabinate of the tweeter and mid cabinet.
Gluing the felt in the backside cabinet. Gluing the felt in the backside cabinet.
The cabinet with bitumen and felt glued on both sides. The cabinet with bitumen and felt glued on both sides.
In the top compartiments also bitumen and on the backside. In the top compartiments also bitumen and on the backside.

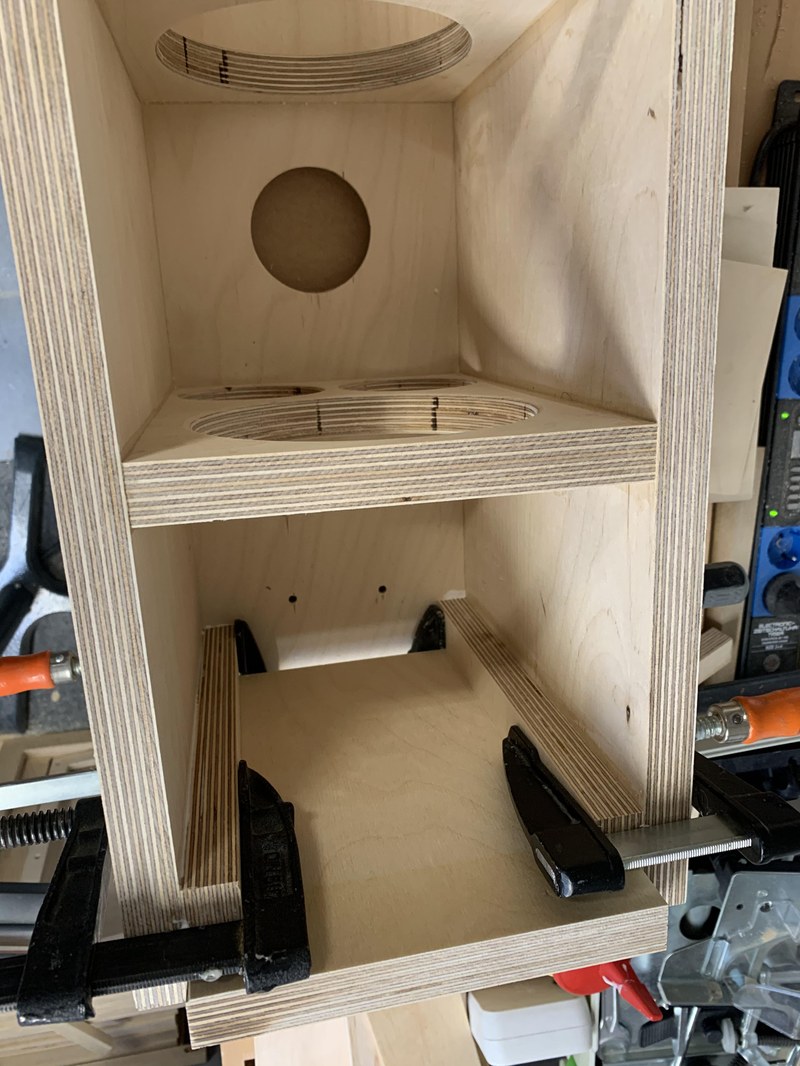

Bars on both sides for the dismountable bottom Bars on both sides for the dismountable bottom
CNO Grand CNO Grand
Varnished with extra matte parquet lacquer with whitening. Varnished with extra matte parquet lacquer with whitening.
Chamfering the driver holes on the backside of the baffle with 45 degrees routing Chamfering the driver holes on the backside of the baffle with 45 degrees routing
Drilling the holes for the routing of the drivers thru both mdf plates at once. Drilling the holes for the routing of the drivers thru both mdf plates at once.
Finished CNO Grand Finished CNO Grand
Seas drivers Tweeter and mid in the CNO Grand.jpeg Seas drivers Tweeter and mid in the CNO Grand.jpeg
Gluing both baffles panels. Think of th chamfering both panels ! Gluing both baffles panels. Think of th chamfering both panels !
The crossovers for both woofers (with the large coil) and the mid and tweeter (with the two green caps) The crossovers for both woofers (with the large coil) and the mid and tweeter (with the two green caps)
